General Specifications
Rated Power (Standby): 300 kVA / 240 kW
Phases: Three-phase
Factory Voltage: 220/127 V
Frequency: 60 Hz
Power Factor: 0.8
Electrical System: 24 V
Main Breaker: Factory-installed, sized for maximum power

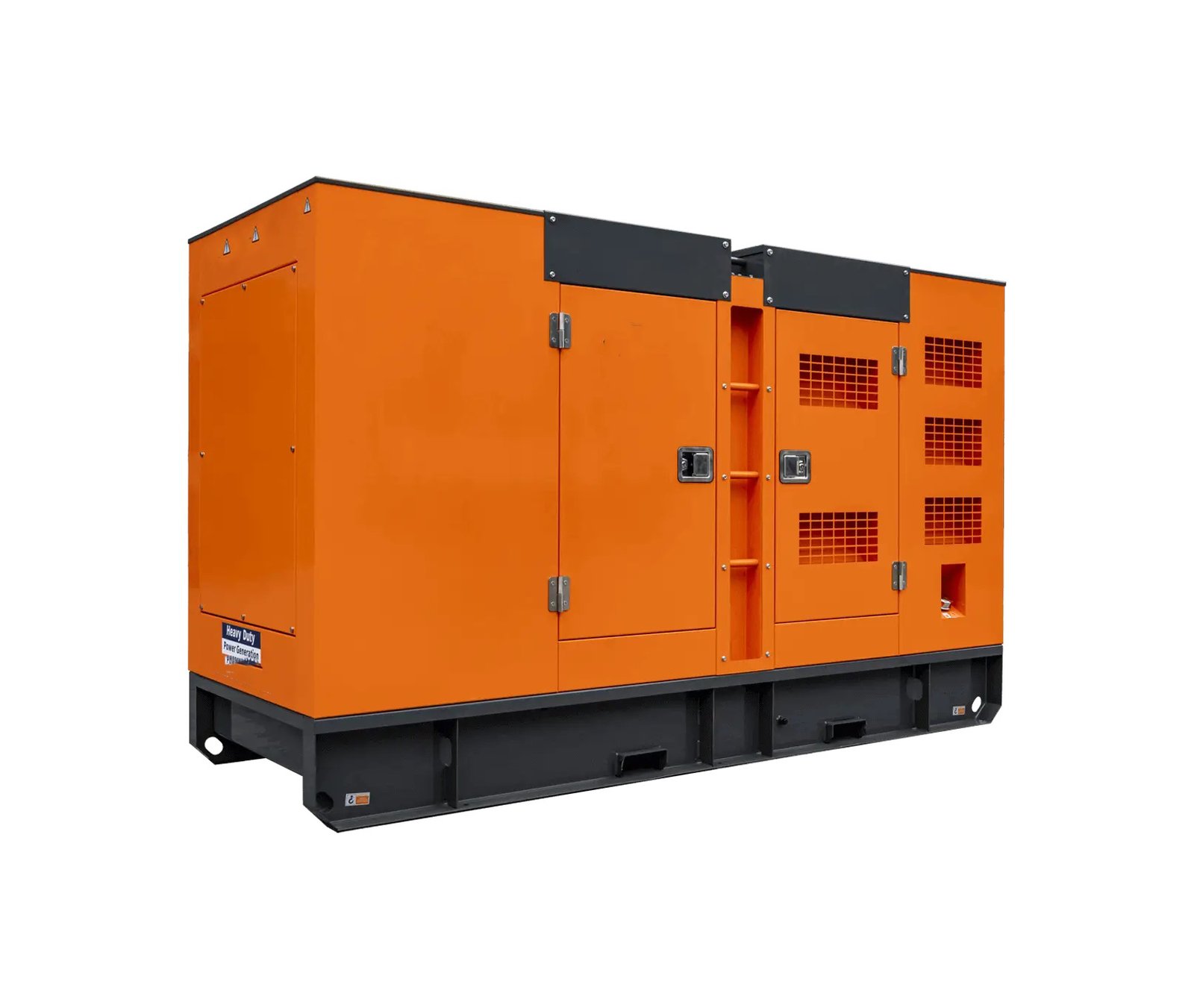

Soundproof Enclosure
Factory-built for outdoor use
Access doors for easy maintenance
Integrated industrial silencer
Protection rating: IP65

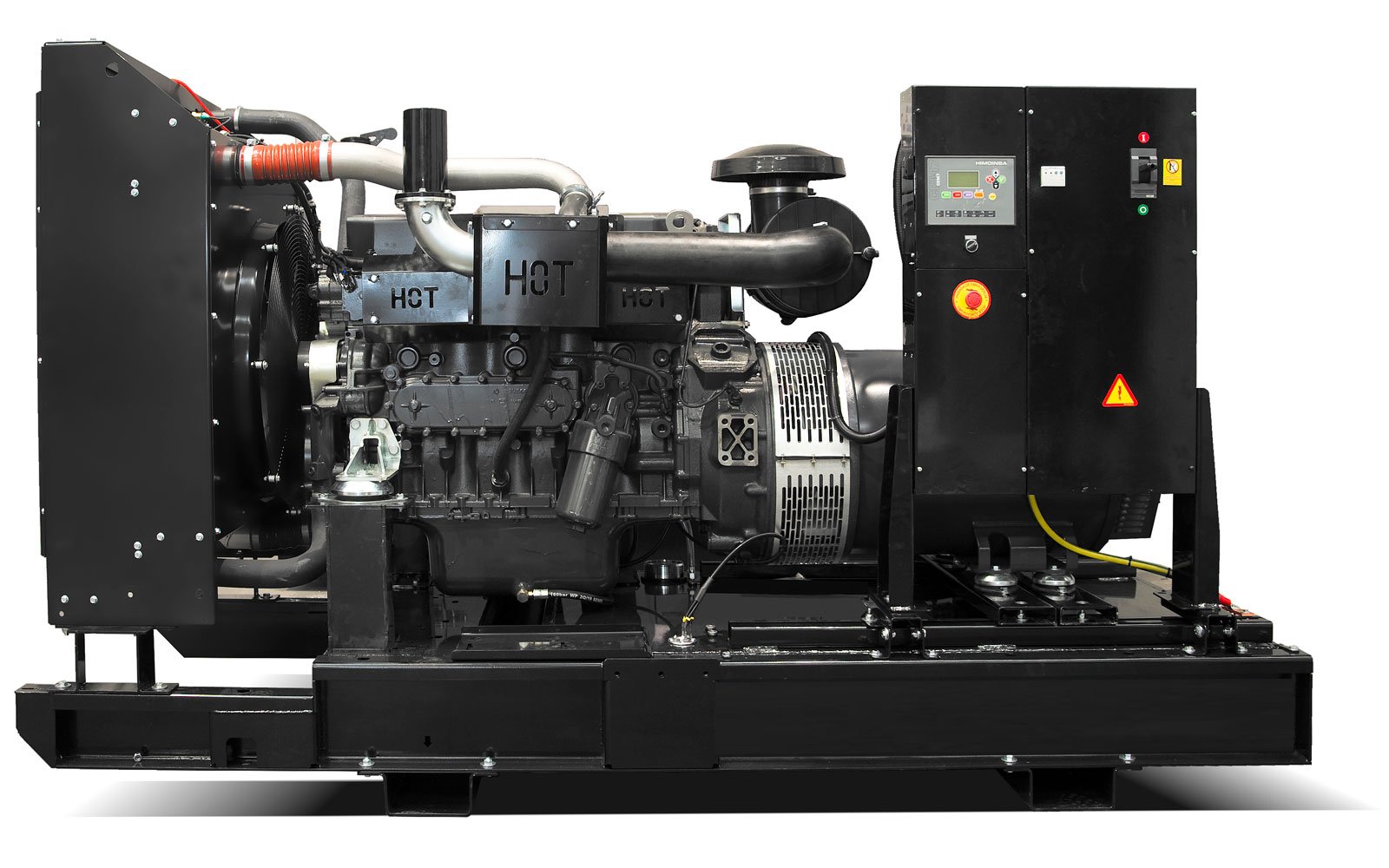

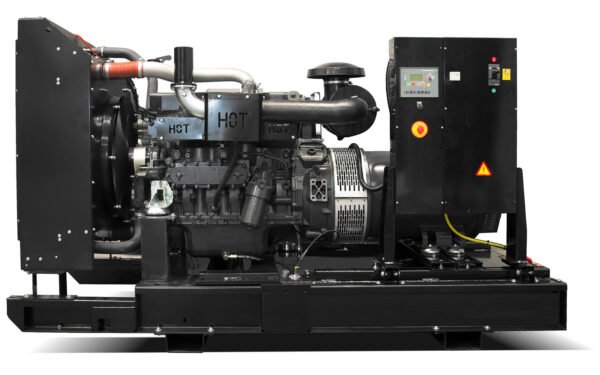

Engine
Cylinders: 6 inline pistons
Type: 4-stroke, turbocharged with intercooler
Governor: Electronic
Cooling: Liquid
Bore: 123 mm
Stroke: 155 mm
Compression Ratio: 17:1
Displacement: 11,051 cc
Injection: Direct
Fuel: Diesel
Fuel System: Integrated pump with electromagnetic actuator
Fuel Consumption:
23.6 gal/h at 100% load
14.7 gal/h at 75% load
Alternator
Type: Brushless
Insulation Class: H
Excitation: Separate
Voltage Regulator: MX341 (±1%)
Protection Rating: IP23
Fuel Tank
Capacity: Double-wall sub-base for 24-hour autonomy
Manufacturer-certified
Control Panel
4-line backlit LCD display
Compatible with CAN and Modbus protocols
Configurable navigation menus
Event log: 50 records
Real-time measurements: L-L / L-N voltages, L1–L2–L3 currents, frequency, oil pressure, coolant temperature, fuel level, engine speed, battery voltage
Programmable alarms: high temperature, low oil pressure, overload, low battery, emergency stop
PC software included (no additional license required)
Remote monitoring via Ethernet/USB
Automatic Transfer Switch (ATS)
Capacity: 1250 A
Type: Motorized switch
Utility monitoring: over/under voltage, over/under frequency, phase imbalance
Event history: 50 records
Programmable weekly exerciser
Manual and automatic operation with mechanical interlock
Standard Equipment
Digital control panel
Battery charger (5 A)
Engine block heater (for cold climates)
Self-supporting metal cabinet with quarter-turn locks
Construction compliant with NEMA 1 standards
Technical Standards
ISO 3046, DIN 6271, BS EN 60034, IEC 34, VDE 0530, NEMA MG1-32, CSA C22.2-100, ISO 8528, ISO 9001:2015
